QC-1012-OH2 : Compatible with direct coolant supply from the machine's tool post to the tool.

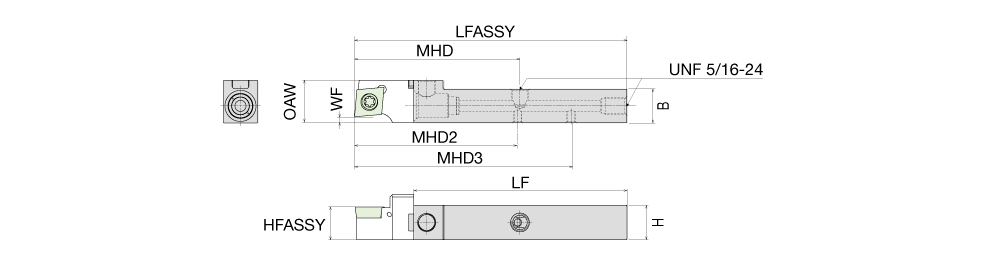

Dimensions with the QC..-SCLCR09-F02-OH (LH=21mm) head installe d are shown.

Dimensions with the QC..-SCLCR09-F02-OH (LH=21mm) head installe d are shown.

COOLANT THROUGH
  DesignationHANDHBLFOAWWFMHDMHD2HFASSYLFASSYCNTGICATGIREMgiic
  QC-1012H-OH2 N10.0012.0083.013.002.0070.0078.0010.0104.0UNF 5/16-24~7921332 0
