TURNING
Main Application

For Triangular insert
Sub Application
C22 Type toolholder : C22 Type toolholder

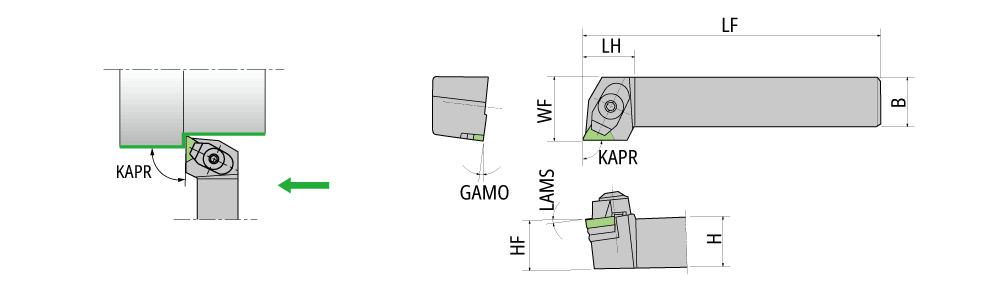

Diagram shows right-hand tool

Diagram shows right-hand tool

  DesignationHANDBGAMOHHFKAPRLAMSLFLHICWFGICATGIREMgiic
  C22L-33 L19.006.019.0019.0091.06.0140.00025.0009.525~25.007910332 0
  C22L-44 L25.006.025.0025.0091.06.0160.00025.0009.525~30.007910335 0
  C22L-45 L25.006.032.0032.0091.06.0160.00025.0009.525~30.007911457 0
  C22R-33 R19.006.019.0019.0091.06.0140.00025.0009.525~25.007910331 0
  C22R-34 R19.006.025.0025.0091.06.0160.00025.0009.525~25.007910333 0
  C22R-44 R25.006.025.0025.0091.06.0160.00025.0009.525~30.007910334 0
  C22R-45 R25.006.032.0032.0091.06.0160.00025.0009.525~30.007911471 0
