Y-SDJC-OH2 type toolholder/Coolant through/Y-axis : Y-SDJC-OH2 type toolholder/Coolant through/Y-axis

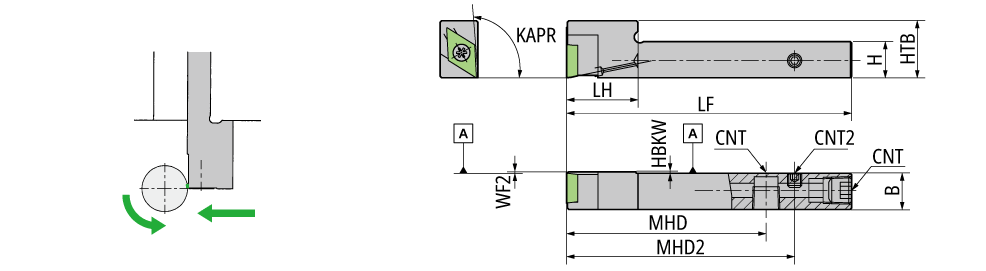

Diagram shows right-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

Diagram shows right-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

COOLANT THROUGH
  DesignationHANDBCNTCNT2HHBKWHTBKAPRLFLHMHDMHD2WF2ICGICATGIREMgiic
  Y-SDJCR1212H11S-OH2 R12.00Rc1/8M512.000.5020.093.0100.020.00070.0080.000.009.525~7908260 0
