Miniature Machining
Main Application
DS-GTT-OH type toolholder : Coolant through

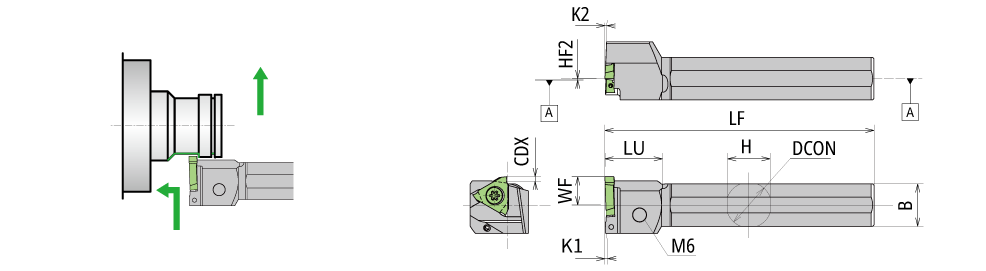

This figure shows the left hand (L). Use the Right (R) or Non-hand (N) insert

This figure shows the left hand (L). Use the Right (R) or Non-hand (N) insert

COOLANT THROUGH
  DesignationHANDBCDXCWN infoCWX infoDCONHHF2K1K2LFLUICWFGICATGIREMgiic
  DS-GTTL16-OH L15.001.600.303.0016.00015.000.02.002.0095.020.009.525~10.007918328 0
  DS-GTTL19-OH L18.001.600.303.0019.05018.000.02.002.00120.020.009.525~10.007919562 0
  DS-GTTL20-OH L19.001.600.303.0020.00019.000.02.002.00120.020.009.525~10.007919563 0
  DS-GTTL22-OH L21.001.600.303.0022.00021.000.02.002.00120.020.009.525~10.007919564 0
  DS-GTTL25-OH L24.001.600.303.0025.40024.000.02.002.00150.020.009.525~10.007918330 0
  DS-GTTL25MET-OH L24.001.600.303.0025.00024.000.02.002.00150.020.009.525~10.007919565 0
