CSV toolholder series for cam-style machine :
CSV series toolholder for cam-style machine

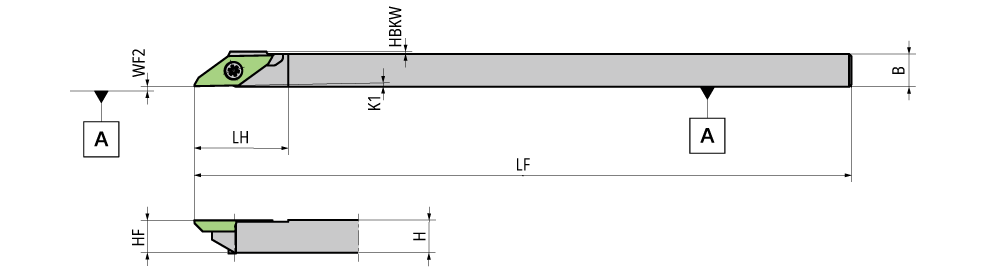

Diagram shows right-hand tool
Diagram shows right-hand tool
Designation
HAND
B
CUTDIA
H
HBKW
HF
K1
LF
LH
IC
WF2
GICAT
GIREM
giic
CSVL07
L
7.00
5.0
7.00
0.50
7.00
1.00
140.0
20.000
6.350~
0.10
7909537
0
CSVL08
L
8.00
5.0
8.00
0.00
8.00
1.00
140.0
20.000
6.350~
0.10
7909538
0
CSVL10
L
10.00
5.0
10.00
0.00
10.00
1.00
140.0
20.000
6.350~
0.10
7909536
0
CSVR07
R
7.00
5.0
7.00
0.50
7.00
1.00
140.0
20.000
6.350~
0.10
7909535
0
CSVR07GX
R
7.00
5.0
7.00
0.50
7.00
1.00
85.0
20.000
6.350~
0.10
7910112
0
CSVR08
R
8.00
5.0
8.00
0.00
8.00
1.00
140.0
20.000
6.350~
0.10
7914497
0
CSVR08GX
R
8.00
5.0
8.00
0.00
8.00
1.00
85.0
20.000
6.350~
0.10
7910111
0
CSVR095
R
9.50
5.0
9.50
0.00
9.50
1.00
140.0
20.000
6.350~
0.10
7909533
0
CSVR10
R
10.00
5.0
10.00
0.00
10.00
1.00
140.0
20.000
6.350~
0.10
7909534
0
CSVR12
R
12.00
5.0
12.00
0.00
12.00
1.00
140.0
20.000
6.350~
0.10
7909587
0
CSVR12GX
R
12.00
5.0
12.00
0.00
12.00
1.00
85.0
20.000
6.350~
0.10
7914515
0
