NTK Cutting Tools - Metal Working Tools - MILLING -

HPC Adjustable type cutter : Dia40-80 / Steel body / Adjustable & fixed type

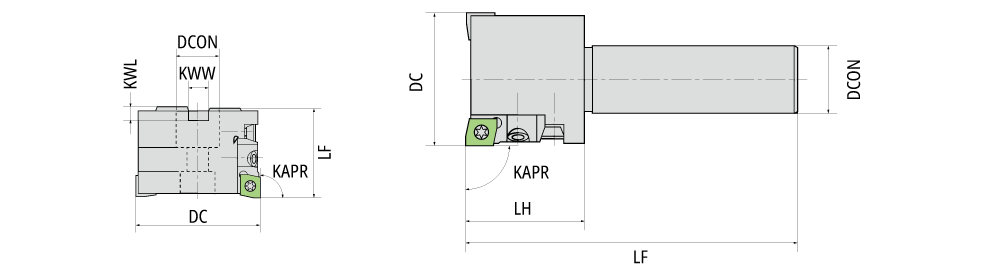

Designation	HAND	CICT	DC	DCON	GAMF	GAMP	KAPR	KWL	KWW	LF	LH		GICAT
RA040T20060R04	R	4	40.0000	20.000	-3	6.0	90.0	0.0	0.0	105.0	45.000	0.45	7909895
RA040T25080R04	R	4	40.0000	25.000	-3	6.0	90.0	0.0	0.0	125.0	45.000	0.60	7909894
RA050C22.00R05	R	5	50.0000	22.000	-3	6.0	90.0	6.3	10.4	45.0	0.000	0.60	7909890
RA050T20060R05	R	5	50.0000	20.000	-3	6.0	90.0	0.0	0.0	105.0	45.000	0.60	7909893
RA050T25080R05	R	5	50.0000	25.000	-3	6.0	90.0	0.0	0.0	125.0	45.000	0.75	7909892
RA050T32080R05	R	5	50.0000	32.000	-3	6.0	90.0	0.0	0.0	125.0	45.000	0.90	7909891
RA063C22.00R06	R	6	63.0000	22.000	-3	6.0	90.0	6.3	10.4	45.0	0.000	0.73	7909889
RA080A25.40R07	R	7	80.0000	25.400	-3	6.0	90.0	6.0	9.5	43.0	0.000	0.95	7909938
RA100A31.75R09	R	9	100.000	31.750	-3	6.0	90.0	8.0	12.7	45.0	0.000	1.60	7910064

MILLING
Main Application
