Y-TBP-OH type toolholder : Y-TBP-OH type toolholder / Coolant through / Y-axis

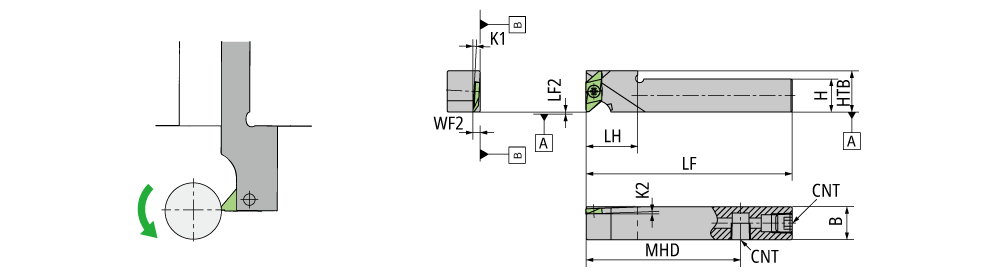

Diagram shows right-hand tool. NOTE: Use a right-handed (R) insert.

Designation	HAND	B	CNT	H	HTB	K1	K2	LF	LF2	LH	MHD	WF2	GICAT	GIREM	giic
Y-TBPR12HS-OH	R	12.00	Rc1/8	12.00	20.0	3.00	2.00	100.0	0.00	20.000	75.00	3.50	7914630		0
Y-TBPR16H-OH	R	16.00	Rc1/8	16.00	20.0	3.00	2.00	100.0	0.00	25.000	75.00	3.50	7914631		0
