Miniature Machining
Main Application
Y-GTT-OH type toolholder : Coolant through / Y-AXIS

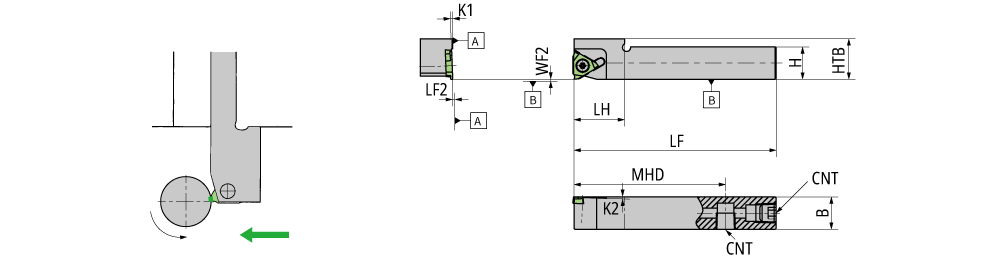

Diagram shows right-hand tool. NOTE: Use a right-handed (R) insert.

Diagram shows right-hand tool. NOTE: Use a right-handed (R) insert.

COOLANT THROUGH
  DesignationHANDBCDXCNTCWN infoCWX infoHHTBK1K2LFLF2LHMHDICWF2GICATGIREMgiic
  Y-GTTR12H00S-OH R12.001.60Rc1/80.303.0012.0020.02.002.00100.00.0020.00075.009.525~0.007914628 0
  Y-GTTR16H00-OH R16.001.60Rc1/80.303.0016.0020.02.002.00100.00.0025.00075.009.525~0.007914629 0
