GTMH32-GX type insert : GTMH32 type insert

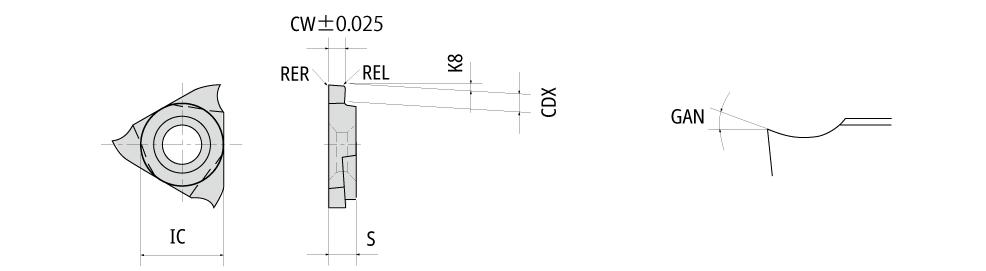

Designation	HAND	APMX	CDX	CW	EPSR	GAN	IC	REL	RER	S	GICAT	giic	Tough ‹————› Hard Grade & Vc
GTMH32033RGX	R	0.250	0.60	0.33	60.0	17.0	9.525	0.05	0.05	3.18	7900469	3	TM4 DM4 ST4
GTMH32043RGX	R	0.900	1.20	0.43	60.0	17.0	9.525	0.05	0.05	3.18	7900470	3	TM4 ST4 DM4
GTMH32050RGX	R	0.900	1.20	0.50	60.0	17.0	9.525	0.05	0.05	3.18	7919686	4	650 TM4 DM4 ST4
GTMH32053RGX	R	0.900	1.20	0.53	60.0	17.0	9.525	0.05	0.05	3.18	7900472	3	TM4 DM4 ST4
GTMH32075RGX	R	1.600	2.00	0.75	60.0	17.0	9.525	0.05	0.05	3.18	7919687	4	TM4 DM4 ST4 650
GTMH32095RGX	R	1.600	2.00	0.95	60.0	17.0	9.525	0.05	0.05	3.18	7906391	3	DM4 ST4 TM4
GTMH32100RGX	R	1.600	2.00	1.00	60.0	17.0	9.525	0.05	0.05	3.18	7919688	4	TM4 ST4 650 DM4
GTMH32100RGX01	R	1.600	2.00	1.00	60.0	17.0	9.525	0.10	0.10	3.18	7919689	4	TM4 650 ST4 DM4
GTMH32150RGX	R	2.700	3.00	1.50	60.0	17.0	9.525	0.05	0.05	3.18	7919690	4	650 TM4 DM4 ST4
GTMH32150RGX01	R	2.700	3.00	1.50	60.0	17.0	9.525	0.10	0.10	3.18	7919691	4	ST4 DM4 650 TM4
GTMH32150RGX02	R	2.700	3.00	1.50	60.0	17.0	9.525	0.20	0.20	3.18	7919692	4	TM4 ST4 650 DM4
GTMH32200RGX	R	2.700	3.00	2.00	60.0	17.0	9.525	0.05	0.05	3.18	7919693	4	DM4 TM4 650 ST4
GTMH32200RGX01	R	2.700	3.00	2.00	60.0	17.0	9.525	0.10	0.10	3.18	7919694	4	TM4 DM4 650 ST4
GTMH32200RGX02	R	2.700	3.00	2.00	60.0	17.0	9.525	0.20	0.20	3.18	7919695	4	TM4 DM4 ST4 650
GTMH32300RGX	R	2.700	3.00	3.00	60.0	17.0	9.525	0.05	0.05	3.18	7919696	4	ST4 650 TM4 DM4
GTMH32300RGX02	R	2.700	3.00	3.00	60.0	17.0	9.525	0.20	0.20	3.18	7919697	4	TM4 DM4 ST4 650
