TTP-OH3 Coolant through : TTP-OH3 Coolant through (direct connect compatible)

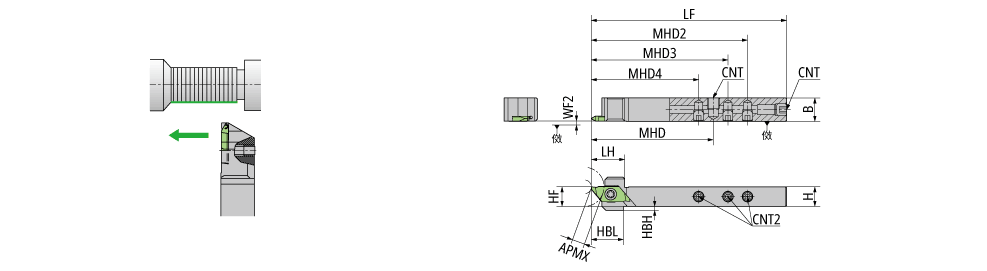

Diagram shows right-hand tool

Designation	HAND	APMX	B	CNT	CNT2	CUTDIA	H	HBH	HBL	HF	LF	LH	MHD	MHD2	MHD3	MHD4	WF2	GICAT	GIREM	giic
TTPL1012H-OH3	L	6.500	12.00	M6*1	M5	16.0	10.00	2.0	16.5	10.00	100.0	17.150	62.50	80.00	70.00	55.00	0.00	7908882		0
TTPR1012H-OH3	R	6.500	12.00	M6*1	M5	16.0	10.00	2.0	16.5	10.00	100.0	17.150	62.50	80.00	70.00	55.00	0.00	7908879		0
