NTK Cutting Tools - Metal Working Tools - Miniature Machining -

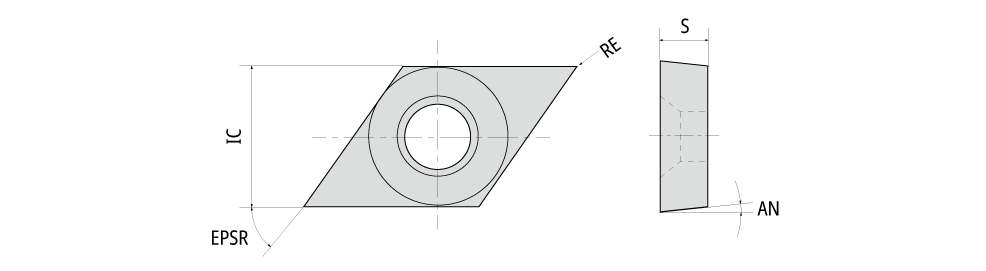

DCGT-CL type insert : DC.T Type insert

Designation	CECC	HAND	EPSR	IC	S	AN	RE	GICAT	giic	Tough ‹————› Hard Grade & Vc
DCGT070201MCL	Sharp edge	N	55.0	6.350	2.38	7	0.08	7906931	5	QM3 DM4 TM4 DT4 ST4
DCGT070202MCL	Sharp edge	N	55.0	6.350	2.38	7	0.18	7906930	5	DM4 DT4 TM4 ST4 QM3
DCGT070204MCL	Sharp edge	N	55.0	6.350	2.38	7	0.38	7906658	5	DM4 DT4 ST4 TM4 QM3
DCGT11T301MCL	Sharp edge	N	55.0	9.525	3.97	7	0.08	7916538	6	ST4 650 QM3 DM4 TM4 DT4
DCGT11T302MCL	Sharp edge	N	55.0	9.525	3.97	7	0.18	7916539	6	QM3 TM4 DT4 650 DM4 ST4
DCGT11T304MCL	Sharp edge	N	55.0	9.525	3.97	7	0.38	7916540	6	TM4 650 ST4 DT4 DM4 QM3

Miniature Machining
Main Application
