CCGT-CL type insert : CC.. Type insert

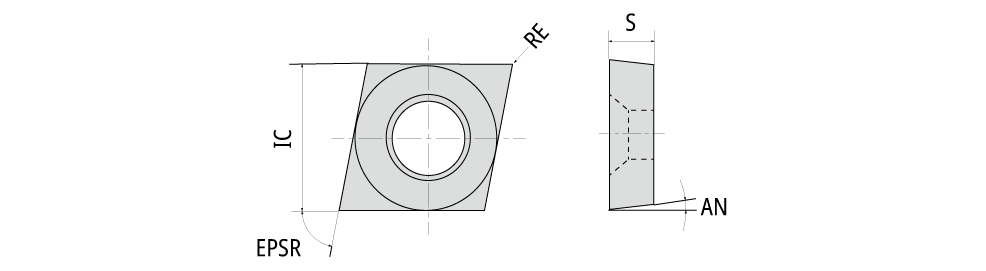

Designation	CECC	HAND	EPSR	IC	AN	RE	S	GICAT	giic	Tough ‹————› Hard Grade & Vc
CCGT060201MCL	Sharp edge	N	80.0	6.350	7	0.08	2.38	7906533	5	QM3 TM4 DT4 DM4 ST4
CCGT060202MCL	Sharp edge	N	80.0	6.350	7	0.18	2.38	7906656	5	ST4 TM4 DT4 QM3 DM4
CCGT09T300CL	Sharp edge	N	80.0	9.525	7	0.03	3.97	7906819	2	DT4 TM4
CCGT09T301MCL	Sharp edge	N	80.0	9.525	7	0.08	3.97	7916535	6	ST4 QM3 650 DM4 TM4 DT4
CCGT09T302MCL	Sharp edge	N	80.0	9.525	7	0.18	3.97	7916536	6	DT4 650 ST4 DM4 QM3 TM4
CCGT09T304MCL	Sharp edge	N	80.0	9.525	7	0.38	3.97	7916537	6	TM4 650 DM4 QM3 DT4 ST4

Miniature Machining
Main Application
