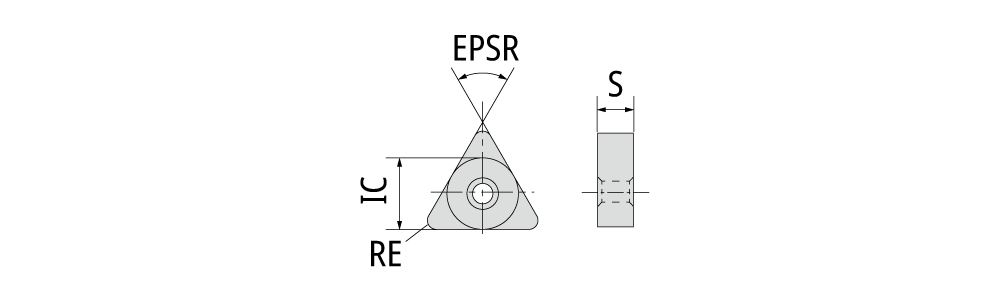

TNGG-ZP type insert : TN.G type insert

Designation	CECC	HAND	EPSR	IC	RE	S	GICAT	giic	Tough ‹————› Hard Grade & Vc
TNGG160402FNZP	Sharp edge	N	60.0	9.525	0.20	4.76	7905490	5	TM4 VM1 ZM3 DM4 QM3
TNGG160404FNZP	Sharp edge	N	60.0	9.525	0.40	4.76	7905489	5	ZM3 DM4 QM3 VM1 TM4
TNGG160408FNZP	Sharp edge	N	60.0	9.525	0.80	4.76	7905488	4	ZM3 VM1 DM4 QM3
TNMG160402FNZP	Sharp edge	N	60.0	9.525	0.20	4.76	7906742	1	UC1
TNMG160404FNZP	Sharp edge	N	60.0	9.525	0.40	4.76	7906725	1	UC1
TNMG160408FNZP	Sharp edge	N	60.0	9.525	0.80	4.76	7906743	1	UC1

Miniature Machining
Main Application
