DCGT-AM3 type insert : DC.T Type insert

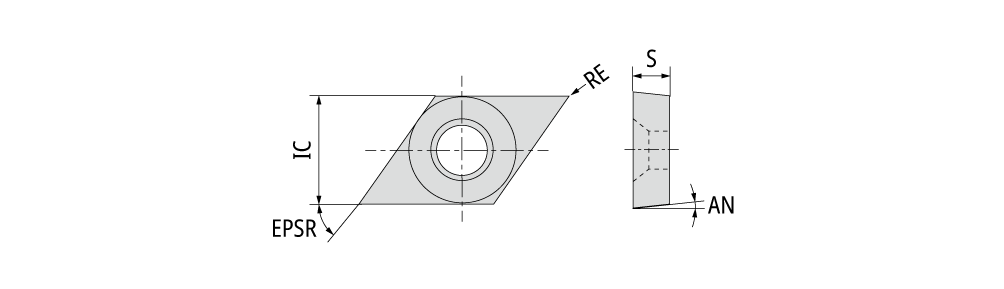

Designation	CECC	HAND	EPSR	IC	S	AN	RE	GICAT	giic	Tough ‹————› Hard Grade & Vc
DCGT070200FNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.03	7905597	4	ZM3 DT4 TM4 VM1
DCGT070201FNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.10	7901911	2	VM1 ZM3
DCGT070201MFNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.08	7905435	4	QM3 TM4 DT4 ST4
DCGT070202FNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.20	7901866	2	VM1 ZM3
DCGT070202MFNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.18	7905306	4	QM3 TM4 ST4 DT4
DCGT070204FNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.40	7901886	2	ZM3 VM1
DCGT070204MFNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.38	7905596	4	DT4 QM3 ST4 TM4
DCGT11T300FNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.03	7905721	4	ZM3 TM4 VM1 DT4
DCGT11T301MFNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.08	7919681	7	DT4 TM4 QM3 VM1 ST4 ZM3 650
DCGT11T302FNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.20	7901868	3	ZM3 QM3 VM1
DCGT11T302MFNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.18	7919683	7	DT4 ZM3 QM3 TM4 ST4 VM1 650
DCGT11T304FNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.40	7902151	3	VM1 ZM3 QM3
DCGT11T304MFNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.38	7919685	7	QM3 ZM3 650 VM1 ST4 TM4 DT4
DCMT070202FNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.20	7905905	1	DM4
DCMT070204FNAM3	Sharp edge	N	55.0	6.350	2.38	7	0.40	7905904	1	DM4
DCMT11T301FNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.10	7906746	1	UC1
DCMT11T302FNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.20	7921866	3	UC1 QM3 DM4 TM4
DCMT11T304FNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.40	7921867	3	UC1 QM3 DM4 TM4
DCMT11T308FNAM3	Sharp edge	N	55.0	9.525	3.97	7	0.80	7921868	3	QM3 DM4 TM4
