NTK Cutting Tools - Metal Working Tools - Miniature Machining -

CCMT type insert : CCM. Type insert

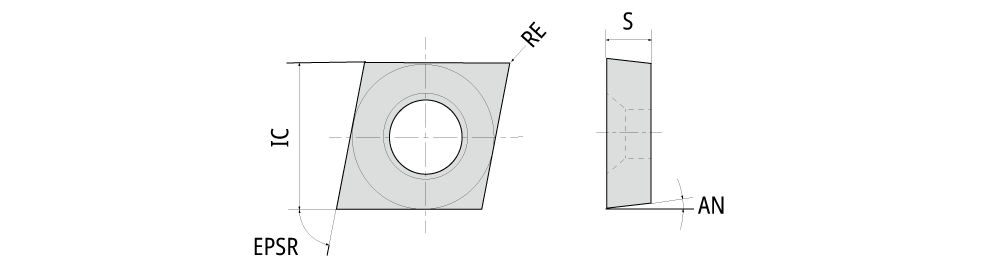

Designation	CECC	HAND	EPSR	IC	AN	RE	S	GICAT	giic	Grade
CCMT060202E002AZ8	E002	N	80.0	6.350	7	0.20	2.38	7910994	1	CP7
CCMT09T302E002AZ8	E002	N	80.0	9.525	7	0.20	2.38	7910997	1	CP7
CCMT060204E004AZ8	E004	N	80.0	6.350	7	0.40	2.38	7910995	1	CP7
CCMT060208E004AZ8	E004	N	80.0	6.350	7	0.80	2.38	7910996	1	CP7
CCMT09T304E004AZ8	E004	N	80.0	9.525	7	0.40	2.38	7910999	1	CP7
CCMT09T308E004AZ8	E004	N	80.0	9.525	7	0.80	2.38	7910998	1	CP7
CCMT060201PBF	Sharp edge	N	80.0	6.350	7	0.10	2.38	7913626	1	PD2
CCMT060202FNAM3	Sharp edge	N	80.0	6.350	7	0.20	2.38	7905910	1	DM4
CCMT060202PBF	Sharp edge	N	80.0	6.350	7	0.20	2.38	7913627	1	PD2
CCMT060204FNAM3	Sharp edge	N	80.0	6.350	7	0.40	2.38	7905909	1	DM4
CCMT060204PBF	Sharp edge	N	80.0	6.350	7	0.40	2.38	7913628	1	PD2
CCMT09T301PBF	Sharp edge	N	80.0	9.525	7	0.10	3.97	7913629	1	PD2
CCMT09T302FNAM3	Sharp edge	N	80.0	9.525	7	0.20	3.97	7905908	1	DM4
CCMT09T302PBF	Sharp edge	N	80.0	9.525	7	0.20	3.97	7913630	1	PD2
CCMT09T302PF	Sharp edge	N	80.0	9.525	7	0.20	3.97	7912689	1	PD2
CCMT09T304FNAM3	Sharp edge	N	80.0	9.525	7	0.40	3.97	7905907	1	DM4
CCMT09T304PBF	Sharp edge	N	80.0	9.525	7	0.40	3.97	7913631	1	PD2
CCMT09T304PF	Sharp edge	N	80.0	9.525	7	0.40	3.97	7912688	1	PD2
CCMT09T308FNAM3	Sharp edge	N	80.0	9.525	7	0.80	3.97	7905906	1	DM4
CCMW09T301	Sharp edge	N	80.0	9.525	7	0.10	3.97	7910000	1	PD1
CCMW09T302	Sharp edge	N	80.0	9.525	7	0.20	3.97	7909999	1	PD1
CCMW09T304	Sharp edge	N	80.0	9.525	7	0.40	3.97	7909998	1	PD1
CCMW09T308	Sharp edge	N	80.0	9.525	7	0.80	3.97	7909997	1	PD1
