Miniature Machining
Main Application
C-SCLC-OH Mogul Bar : Coolant through / Carbide shank

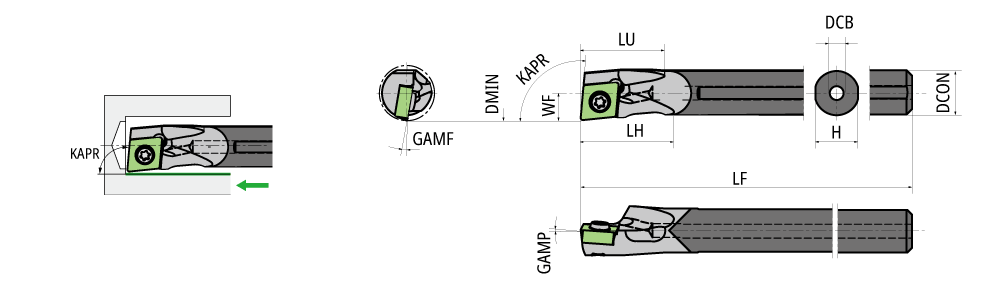

Diagram shows right-hand tool. Use a left-handed insert. F1 chipbreaker evacuates chips BACKWARD.

Diagram shows right-hand tool. Use a left-handed insert. F1 chipbreaker evacuates chips BACKWARD.

COOLANT THROUGH
  DesignationHANDDMINDCBDCONGAMFGAMPHKAPRLFLHLUREICWFGICATGIREMgiic
  C10M-SCLCL06D12-OH L12.002.50010.00011.0.09.6095.0150.020.00019.500.406.350~6.007912315 0
  C08K-SCLCR06D10-OH R10.002.5008.00013.0.07.7095.0125.016.50015.000.406.350~5.007914588 0
  C10M-SCLCR06D12-OH R12.002.50010.00011.0.09.6095.0150.020.00019.500.406.350~6.007912183 0
  C12M-SCLCR06D14-OH R14.003.00012.0009.0.011.5095.0150.023.50022.500.406.350~7.007912184 0
