TBP-BM Mold chipbreaker : TBP type insert for back turning with Mold chipbreaker

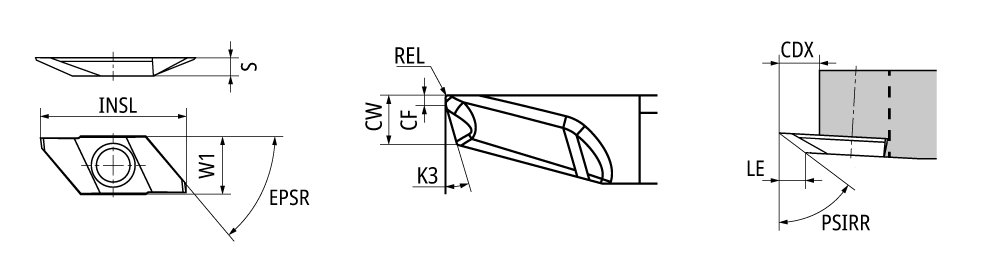

Diagram shows right-hand tool

Designation	HAND	CDX	CF	CW	EPSR	LE	INSL	PSIRR	REL	S	W1	GICAT	giic	Tough ‹————› Hard Grade & Vc
TBP72FR05-BM	R	5.30	0.30	1.40	50.0	3.50	20.00	72.0	0.05	2.50	8.000	7919708	4	TM4 DM4 ST4 650
TBP72FR10M-BM	R	5.30	0.30	1.40	50.0	3.50	20.00	72.0	0.08	2.50	8.000	7919709	4	650 DM4 ST4 TM4
TBP72FR20M-BM	R	5.30	0.30	1.40	50.0	3.50	20.00	72.0	0.18	2.50	8.000	7919710	4	ST4 DM4 TM4 650
