JWNXM Arbor type Cutter : For Gray / Ductile cast iron, Lead angle 88 degree / DOC max. 5.5mm

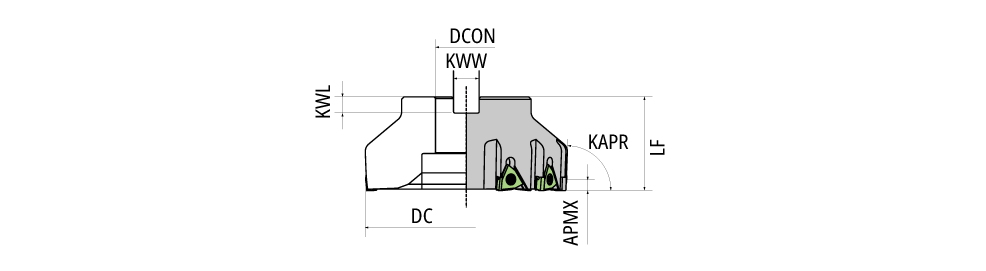

Designation	HAND	APMX	APMX_2	CICT	DC	DCON	GAMF	GAMP	KAPR	KWL	KWW	LF		IC	GICAT
JWNXM063C2200R06-A	R	5.500	4.50	6	63.0000	22.000	4.0	5.0	88.0	6.3	10.4	50.0	0.90	12.700~	7913763
JWNXM080A2540R08-A	R	5.500	4.50	8	80.0000	25.400	7.0	5.0	88.0	6.0	9.5	50.0	1.10	12.700~	7913764
JWNXM100A3175R10-A	R	5.500	4.50	10	100.000	31.750	10.0	5.0	88.0	8.0	12.7	50.0	1.80	12.700~	7913751
JWNXM125A3810R12-A	R	5.500	4.50	12	125.000	38.100	10.0	5.0	88.0	10.0	15.9	58.0	3.00	12.700~	7913765
JWNXM160A5080R16-A	R	5.500	4.50	16	160.000	50.800	10.0	5.0	88.0	11.0	19.0	60.0	4.90	12.700~	7913766
