DS-SDU-ACH type toolholder : Adjustable centerline height

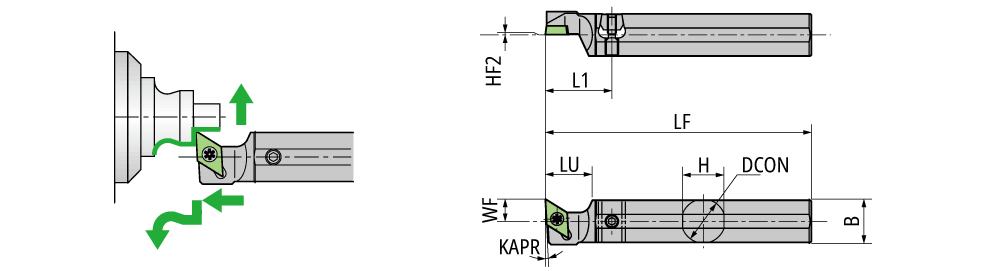

Diagram shows left-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

Diagram shows left-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

  DesignationHANDBDCONHHF2 TypeKAPRLFLUL1WFICGICATGIREMgiic
  DS-SDUL16F-11-ACH L15.0016.00015.50Type B(0 info3.080.017.0030.0010.009.525~7912348 0
  DS-SDUL19-11-ACH L19.0019.05018.00Type A(0 info3.0120.020.0030.0010.009.525~7912347 0
  DS-SDUL20-11-ACH L19.0020.00019.00Type B(0 info3.0120.020.0030.0010.009.525~7914592 0
  DS-SDUL22-11-ACH L21.0022.00021.00Type B(0 info3.0120.020.0030.0010.009.525~7912300 0
  DS-SDUL25-11-ACH L24.0025.40024.00Type A(0 info3.0150.020.0030.0010.009.525~7912301 0
  DS-SDUL25-11MET-ACH L24.0025.00024.00Type A(0 info3.0150.020.0030.0010.009.525~7913232 0
