DS-SCL-ACH type toolholder : Adjustable centerline height

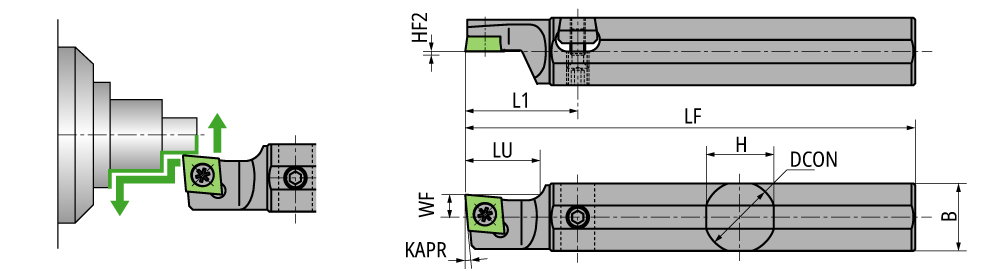

Diagram shows left-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

Diagram shows left-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

  DesignationHANDBDCONHHF2 TypeKAPRLFLUL1ICWFGICATGIREMgiic
  DS-SCLL16F-09-ACH L15.5016.00015.50Type B(0 info5.080.020.0030.009.525~6.007912439 0
  DS-SCLL19-09-ACH L18.0019.05018.00Type A(0 info5.0120.020.0030.009.525~6.007912440 0
  DS-SCLL20-09-ACH L19.0020.00019.00Type A(0 info5.0120.020.0030.009.525~6.007912441 0
  DS-SCLL22-09-ACH L21.0022.00021.00Type A(0 info5.0120.020.0030.009.525~6.007912442 0
  DS-SCLL25-09-ACH L24.0025.40024.00Type A(0 info5.0150.020.0030.009.525~6.007912443 0
  DS-SCLL25-09MET-ACH L24.0025.00024.00Type A(0 info5.0150.020.0030.009.525~6.007913231 0
