Miniature Machining
Main Application
DS-PTX-ACH type toolholder : Adjustable centerline height

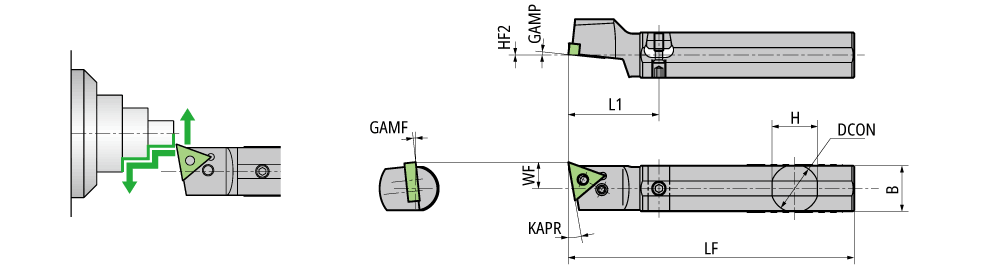

Diagram shows left-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

Diagram shows left-hand tool. NOTE: Use a right-handed (R) or non-handed insert.

  DesignationHANDBDCONGAMFGAMPHHF2 TypeKAPRLFL1ICWFGICATGIREMgiic
  DS-PTXL16-33-ACH L15.0016.0006.06.015.50Type B(0 info10.0120.038.009.525~11.007912350 0
  DS-PTXL19-33-ACH L18.0019.0506.06.018.00Type B(0 info10.0120.038.009.525~11.007912305 0
  DS-PTXL20-33-ACH L19.0020.0006.06.019.00Type B(0 info10.0120.038.009.525~11.007912306 0
  DS-PTXL22-33-ACH L21.0022.0006.06.021.00Type B(0 info10.0120.038.009.525~12.007912307 0
  DS-PTXL25-33-ACH L24.0025.4006.06.024.00Type A(0 info10.0150.038.009.525~13.007912308 0
  DS-PTXL25-33MET-ACH L24.0025.0006.06.024.00Type A(0 info10.0150.038.009.525~13.007913233 0
