NTK Cutting Tools - Metal Working Tools - MILLING -

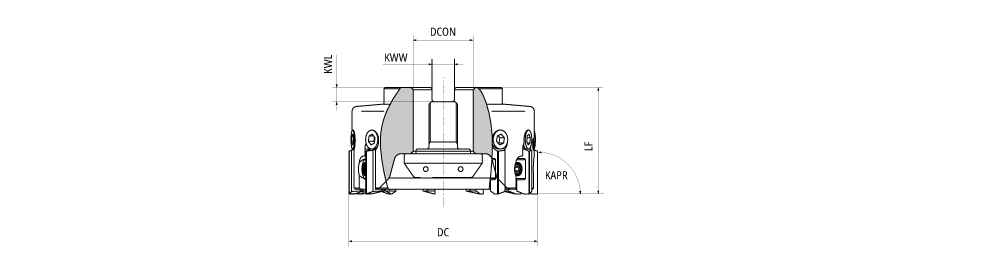

JHF Arbor type Cutter : Dia50-125 / Aluminum body / Adjustable type / Light weight body

Designation	HAND	CICT	DC	DCON	GAMF	GAMP	KAPR	KWL	KWW	LF		GICAT
JHF050C2200R07	R	7	50.0000	22.000	5.0	.0	90.0	6.3	10.4	45.0	0.23	7913196
JHF063C2200R10	R	10	63.0000	22.000	5.0	.0	90.0	6.3	10.4	45.0	0.38	7913195
JHF080A2540R12	R	12	80.0000	25.400	5.0	.0	90.0	6.0	9.5	45.0	0.48	7913194
JHF100A2540R16	R	16	100.000	25.400	5.0	.0	90.0	6.0	9.5	45.0	0.74	7913193
JHF125A2540R22	R	22	125.000	25.400	5.0	.0	90.0	6.0	9.5	45.0	1.10	7913192

MILLING
Main Application
