NTK Cutting Tools - Metal Working Tools - TURNING -

GWPFM-GT / CUTDUO EXTRA : GWPFM-GT FACE GROOVING INSERT

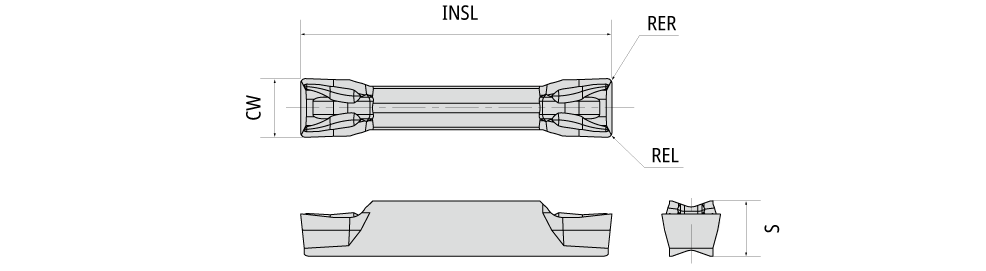

Designation	HAND	CW	INSL	REL	RER	S	GICAT	giic	Grade
GWPFM300N02-GT	N	3.00	24.50	0.20	0.20	4.20	7906690	1	DM4
GWPFM300N04-GT	N	3.00	24.50	0.40	0.40	4.20	7906691	1	DM4
GWPFM400N04-GT	N	4.00	26.50	0.40	0.40	4.20	7906692	1	DM4
GWPFM400N08-GT	N	4.00	26.50	0.80	0.80	4.20	7906693	1	DM4
GWPFM500N04-GT	N	5.00	26.50	0.40	0.40	4.20	7906694	1	DM4
GWPFM500N08-GT	N	5.00	26.50	0.80	0.80	4.20	7906695	1	DM4
GWPFM600N04-GT	N	6.00	26.50	0.40	0.40	4.20	7906696	1	DM4
GWPFM600N08-GT	N	6.00	26.50	0.80	0.80	4.20	7906697	1	DM4

TURNING
Main Application
