Y-TBDP type toolholder / Y-axis : Y-TBDP type toolholder / Y-axis

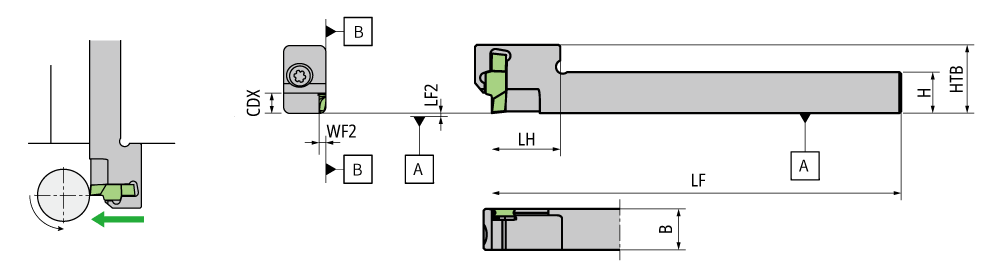

Diagram shows right-hand tool. NOTE: Use a right-handed (R) insert.

Designation	HAND	B	CDX	H	HTB	LF	LF2	LH	WF2	GICAT	GIREM	giic
Y-TBDPR12S	R	12.00	5.00	12.00	20.0	120.0	0.00	20.000	2.05	7914595		0
