DS-SVVPN-ACH type toolholder : DS-SVVPN-ACH type toolholder / Adjustable centerline height

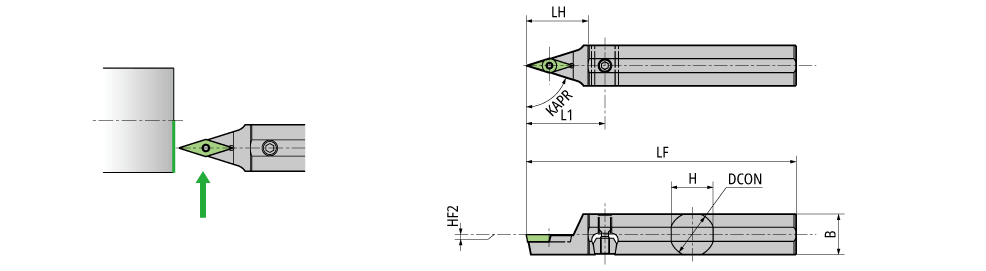

Designation	HAND	B	IC	DCON	H	HF2	KAPR	LF	L1	GICAT
DS-SVVPN16-11-ACH	N	15.00	6.350~	16.000	15.50	0.3	72.5	120.0	31.00	7912349
DS-SVVPN19-11-ACH	N	18.00	6.350~	19.050	18.00	0.3	72.5	120.0	35.00	7912302
DS-SVVPN20-11-ACH	N	19.00	6.350~	20.000	19.00	0.3	72.5	120.0	35.00	7912303
DS-SVVPN22-11-ACH	N	21.00	6.350~	22.000	21.00	0.2	72.5	120.0	35.00	7912304
DS-SVVPN25-11-ACH	N	24.00	6.350~	25.400	24.00	0.2	72.5	150.0	35.00	7912357
