NTK Cutting Tools - Metal Working Tools - TURNING - - GWPG(M)-GW Best for side turning

GWPG(M)-GW Best for side turning : GWPG(M)-GW Best for side turning

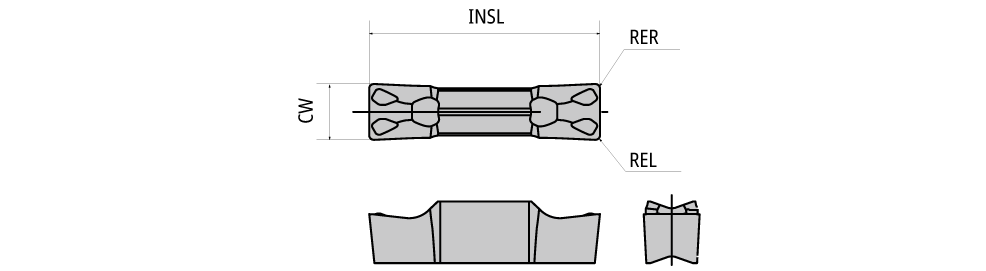

Designation	HAND	CW	INSL	REL	RER	GICAT	giic	Tough ‹————› Hard Grade & Vc
GWPG300N02D-GW	N	3.00	20.60	0.20	0.20	7920948	2	DM4 650
GWPG300N04D-GW	N	3.00	20.60	0.40	0.40	7905504	1	DM4
GWPM300N04D-GW	N	3.00	20.60	0.40	0.40	7905513	1	DM4
GWPG400N02E-GW	N	4.00	20.60	0.20	0.20	7920947	2	DM4 650
GWPG400N04E-GW	N	4.00	20.60	0.40	0.40	7905507	1	DM4
GWPG400N08E-GW	N	4.00	20.60	0.80	0.80	7905650	1	DM4
GWPM400N04E-GW	N	4.00	20.60	0.40	0.40	7905514	1	DM4
GWPG500N02F-GW	N	5.00	20.60	0.20	0.20	7905509	1	DM4
GWPG500N04F-GW	N	5.00	20.60	0.40	0.40	7905510	1	DM4
GWPG500N08F-GW	N	5.00	20.60	0.80	0.80	7905651	1	DM4
GWPM500N04F-GW	N	5.00	20.60	0.40	0.40	7905516	1	DM4
GWPG600N02G-GW	N	6.00	25.60	0.20	0.20	7905511	1	DM4
GWPG600N04G-GW	N	6.00	25.60	0.40	0.40	7905512	1	DM4
GWPG600N08G-GW	N	6.00	25.60	0.80	0.80	7905653	1	DM4
GWPM600N04G-GW	N	6.00	25.60	0.40	0.40	7905517	1	DM4

TURNING
Main Application
