CTP-SUB-OH3 type toolholder : For sub-spindle / Coolant through

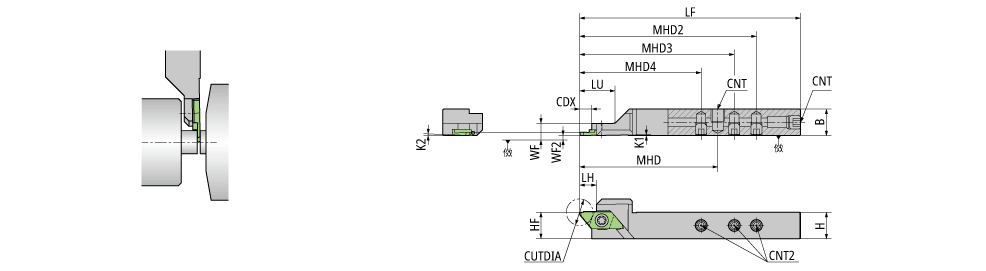

Diagram shows right-hand tool.

Designation	HAND	B	CDX	CNT	CNT2	CUTDIA	H	HF	K1	K2	LF	LH	LU	MHD	MHD2	MHD3	MHD4	WF	WF2	GICAT	GIREM	giic
CTPL12H-SUB-OH3	L	12.00	5.50	M6*1	M5	12.0	12.00	12.00	1.00	2.00	100.0	7.600	16.00	62.50	80.00	70.00	55.00	5.50	0.00	7908880		0
CTPR12H-SUB-OH3	R	12.00	5.50	M6*1	M5	12.0	12.00	12.00	1.00	2.00	100.0	7.600	16.00	62.50	80.00	70.00	55.00	5.50	0.00	7908881		0
