GTWP-K(M) type toolholder / for Grooving : GTWP-K(M) type toolholder / for Grooving

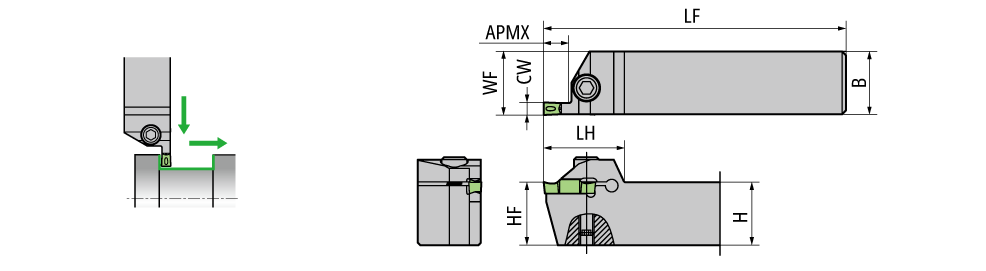

Diagram shows right-hand tool

Diagram shows right-hand tool

  DesignationHANDAPMXBCWHHFLFLHWFGICATGIREMgiic
  GTWPL2020K-3D10 L10.00020.003.0020.0020.00125.029.00020.207912596 0
  GTWPL2020K-4E10 L10.00020.004.0020.0020.00125.029.00020.307912600 0
  GTWPL2020K-5F10 L10.00020.005.0020.0020.00125.029.00020.307912604 0
  GTWPL2525M-3D10 L10.00025.003.0025.0025.00150.032.00025.207912597 0
  GTWPL2525M-4E10 L10.00025.004.0025.0025.00150.032.00025.307912601 0
  GTWPL2525M-5F10 L10.00025.005.0025.0025.00150.032.00025.307912605 0
  GTWPL2020K-6G12 L12.00020.006.0020.0020.00125.034.00020.357912608 0
  GTWPL2525M-6G12 L12.00025.006.0025.0025.00150.037.00025.357912609 0
  GTWPL2020K-3D20 L20.00020.003.0020.0020.00125.041.00020.207912598 0
  GTWPL2020K-4E20 L20.00020.004.0020.0020.00125.041.00020.307912602 0
  GTWPL2020K-5F20 L20.00020.005.0020.0020.00125.041.00020.307912606 0
  GTWPL2525M-3D20 L20.00025.003.0025.0025.00150.044.00025.207912599 0
  GTWPL2525M-4E20 L20.00025.004.0025.0025.00150.044.00025.307912603 0
  GTWPL2525M-5F20 L20.00025.005.0025.0025.00150.044.00025.307912607 0
  GTWPL2020K-6G25 L25.00020.006.0020.0020.00125.049.00020.357912610 0
  GTWPL2525M-6G25 L25.00025.006.0025.0025.00150.052.00025.357914604 0
  GTWPR2020K-3D10 R10.00020.003.0020.0020.00125.029.00020.207912518 0
  GTWPR2020K-4E10 R10.00020.004.0020.0020.00125.029.00020.307914602 0
  GTWPR2020K-5F10 R10.00020.005.0020.0020.00125.029.00020.307912524 0
  GTWPR2525M-3D10 R10.00025.003.0025.0025.00150.032.00025.207912519 0
  GTWPR2525M-4E10 R10.00025.004.0025.0025.00150.032.00025.307912521 0
  GTWPR2525M-5F10 R10.00025.005.0025.0025.00150.032.00025.307914603 0
  GTWPR2020K-6G12 R12.00020.006.0020.0020.00125.034.00020.357912527 0
  GTWPR2525M-6G12 R12.00025.006.0025.0025.00150.037.00025.357912528 0
  GTWPR2020K-3D20 R20.00020.003.0020.0020.00125.041.00020.207912520 0
  GTWPR2020K-4E20 R20.00020.004.0020.0020.00125.041.00020.307912522 0
  GTWPR2020K-5F20 R20.00020.005.0020.0020.00125.041.00020.307912525 0
  GTWPR2525M-3D20 R20.00025.003.0025.0025.00150.044.00025.207914601 0
  GTWPR2525M-4E20 R20.00025.004.0025.0025.00150.044.00025.307912523 0
  GTWPR2525M-5F20 R20.00025.005.0025.0025.00150.044.00025.307912526 0
  GTWPR2020K-6G25 R25.00020.006.0020.0020.00125.049.00020.357912529 0
  GTWPR2525M-6G25 R25.00025.006.0025.0025.00150.052.00025.357912530 0
