Miniature Machining
Main Application
THE FRONT MAX with Wiper : Max ap5.0mm

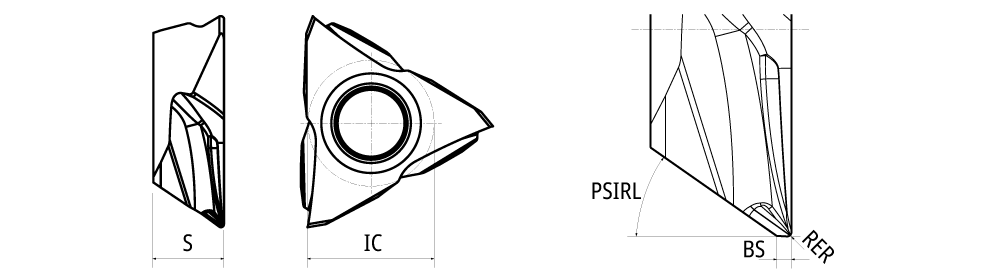

Diagram shows right-hand tool. All angles shown are obtained when insert is set in the holder.

Diagram shows right-hand tool. All angles shown are obtained when insert is set in the holder.

  DesignationHANDAPMXBSICPSIRLSRERGICATGIREMgiicTough ‹————› Hard
Grade & Vc
  TFX3301MRW R5.0000.509.52532.04.760.087900529 2ST4 DM4
  TFX3302MRW R5.0000.509.52532.04.760.187900530 2ST4 DM4
  TFX3304MRW R5.0000.509.52532.04.760.387900531 2DM4 ST4
