Miniature Machining
Main Application
Y-GTPA-OH type toolholder : For grooving / Coolant through / Y-axis

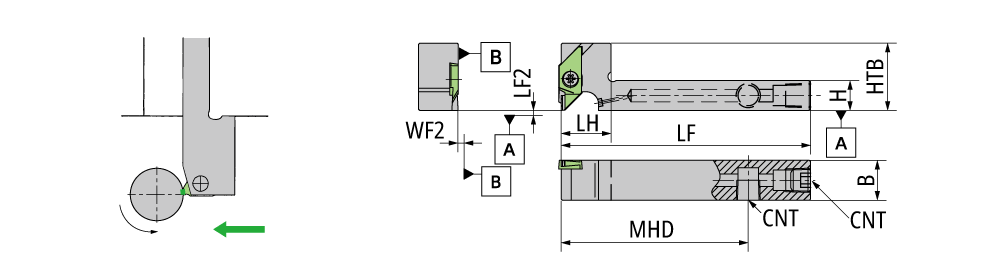

Diagram shows right-hand tool. NOTE: Use a right-handed (R) insert.

Diagram shows right-hand tool. NOTE: Use a right-handed (R) insert.

COOLANT THROUGH
  DesignationHANDBCNTHHTBLFLF2LHMHDWF2GICATGIREMgiic
  Y-GTPAR1014FSS-OH R14.00M6*110.0027.080.00.0015.00055.000.107913198 0
  Y-GTPAR1216HS-OH R16.00Rc1/812.0027.0100.00.0020.00075.000.107913011 0
  Y-GTPAR1616H-OH R16.00Rc1/816.0027.0100.00.0025.00075.000.107913012 0
