NTK Cutting Tools - Metal Working Tools - Miniature Machining -

CTP type toolholder / Coolant through : CTP type toolholder / Coolant through

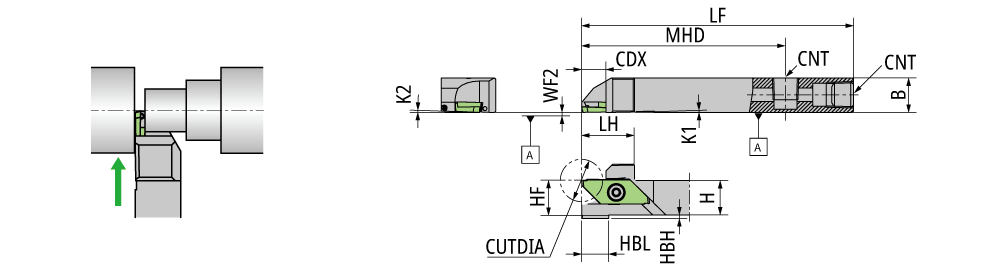

Designation	HAND	B	CDX	CNT	CUTDIA	H	HBH	HBL	HF	K1	K2	LF	LH	MHD	GICAT
CTPL1012H-OH	L	12.00	7.00	M6*1	12.0	10.00	4.0	19.0	10.00	1.00	2.00	100.0	19.500	75.00	7913102
CTPL12H-OH	L	12.00	7.00	Rc1/8	12.0	12.00	2.0	10.0	12.00	1.00	2.00	100.0	19.500	75.00	7913062
CTPL16H-OH	L	16.00	7.00	Rc1/8	12.0	16.00	0.0	0.0	16.00	1.00	2.00	100.0	19.500	75.00	7913104
CTPR1012H-OH	R	12.00	7.00	M6*1	12.0	10.00	4.0	19.0	10.00	1.00	2.00	100.0	19.500	75.00	7913101
CTPR12H-OH	R	12.00	7.00	Rc1/8	12.0	12.00	2.0	10.0	12.00	1.00	2.00	100.0	19.500	75.00	7913065
CTPR16H-OH	R	16.00	7.00	Rc1/8	12.0	16.00	0.0	0.0	16.00	1.00	2.00	100.0	19.500	75.00	7913103
