NTK Cutting Tools - Metal Working Tools - Miniature Machining -

SSP-T Hexalobular socket (6-LOBE hole) : SSP-T Hexalobular socket (6-LOBE hole)

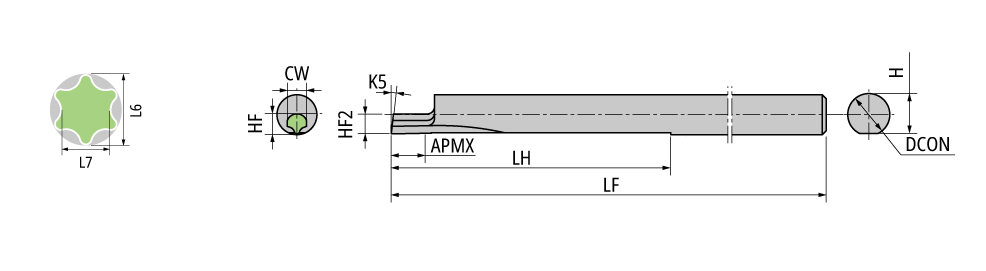

Designation	HAND	APMX	CW	DCON	H	HF	HF2	K5	LF	LH	GICAT	giic	Grade
SSP050N25T06	N	2.500	1.20	5.000	4.75	1.09	2.4	6.00	70.0	35.000	7906968	1	TM4
SSP050N31T07	N	3.100	1.40	5.000	4.75	1.29	2.4	6.00	70.0	35.000	7906969	1	TM4
SSP050N36T08	N	3.600	1.60	5.000	4.75	1.50	2.4	6.00	70.0	35.000	7906970	1	TM4
SSP050N41T10	N	4.100	1.80	5.000	4.75	1.70	2.4	6.00	70.0	35.000	7906971	1	TM4
SSP050N43T15	N	4.300	2.20	5.000	4.75	2.10	2.4	6.00	70.0	35.000	7906972	1	TM4
SSP050N46T20	N	4.600	2.60	5.000	4.75	2.50	2.4	6.00	70.0	35.000	7906973	1	TM4
SSP050N50T25	N	5.000	3.00	5.000	4.75	2.90	2.4	6.00	70.0	35.000	7906974	1	TM4
SSP050N55T27	N	5.500	3.40	5.000	4.75	3.30	2.4	6.00	70.0	35.000	7906975	1	TM4
SSP050N55T30	N	5.500	3.80	5.000	4.75	3.70	2.4	6.00	70.0	35.000	7906976	1	TM4

Miniature Machining
Main Application
