JFDX-75 Arbor type Cutter : For Gray / Ductile cast iron, Lead angle 75 degree / DOC max. 6mm

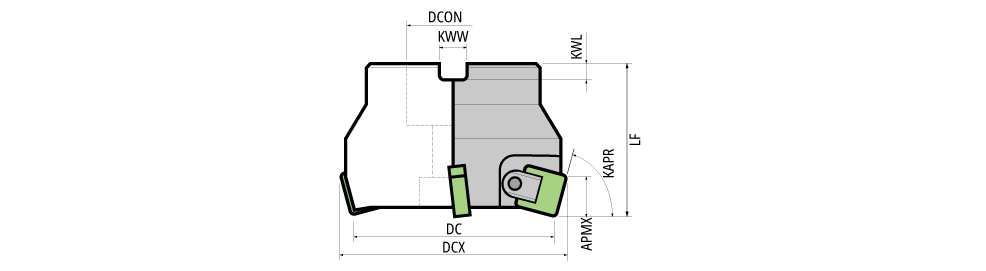

  DesignationHANDCICT infoAPMXDCDCONDCX infoGAMFGAMPKAPRKWLKWWLFSGICATGIREMgiic
  JFDX063-75-06R R6-6.00063.000022.00070.00-10.0-6.075.06.010.450.00.794.76~7911747 0
  JFDX063-75-06RB R6-6.00063.000022.00070.00-10.0-6.075.06.010.450.00.974.76~7912994 0
  JFDX080-75-08R R8-6.00080.000025.40087.00-10.0-6.075.06.09.550.01.064.76~7911748 0
  JFDX080-75-08RB R8-6.00080.000025.40087.00-10.0-6.075.06.09.550.01.364.76~7912995 0
  JFDX100-75-10R R10-6.000100.00031.750107.00-10.0-6.075.08.012.750.01.394.76~7911749 0
  JFDX100-75-10RB R10-6.000100.00031.750107.00-10.0-6.075.08.012.750.01.834.76~7912996 0
  JFDX125-75-12R R12-6.000125.00038.100132.00-10.0-6.075.010.015.958.02.564.76~7911750 0
  JFDX125-75-12RB R12-6.000125.00038.100132.00-10.0-6.075.010.015.958.03.344.76~7912997 0
  JFDX160-75-16RB R16-6.000160.00050.800166.00-10.0-6.075.011.019.060.05.474.76~7912998 0
