GTT-OH type toolholder / Coolant through : GTT-OH type toolholder / Coolant through

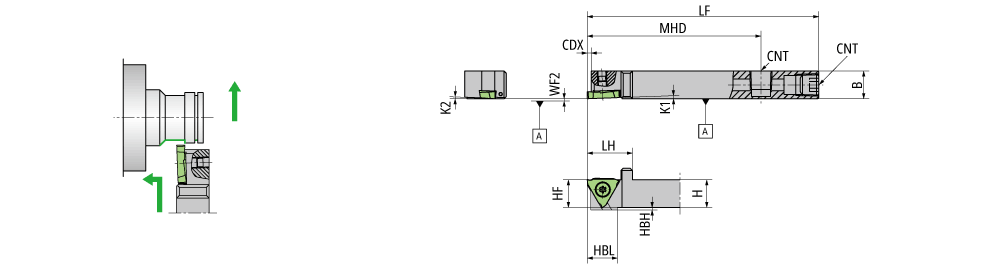

Diagram shows right-hand tool

Designation	HAND	B	CDX	CNT	CWN	CWX	H	HBH	HBL	HF	K1	K2	LF	LH	MHD	IC	GICAT
GTTR1012H00-OH	R	12.00	1.60	M6*1	0.30	3.00	10.00	1.0	13.0	10.00	2.00	2.00	100.0	19.500	70.00	9.525~	7913100
GTTR12H00-OH	R	12.00	1.60	Rc1/8	0.30	3.00	12.00	1.0	13.0	12.00	2.00	2.00	100.0	19.500	70.00	9.525~	7914615
GTTR16H00-OH	R	16.00	1.60	Rc1/8	0.30	3.00	16.00	0.0	0.0	16.00	2.00	2.00	100.0	19.500	70.00	9.525~	7914635
