NTK Cutting Tools - Metal Working Tools - Miniature Machining - - GTT-OH3 type toolholder / Coolant through

GTT-OH3 type toolholder / Coolant through : GTT-OH3 type toolholder / Coolant through

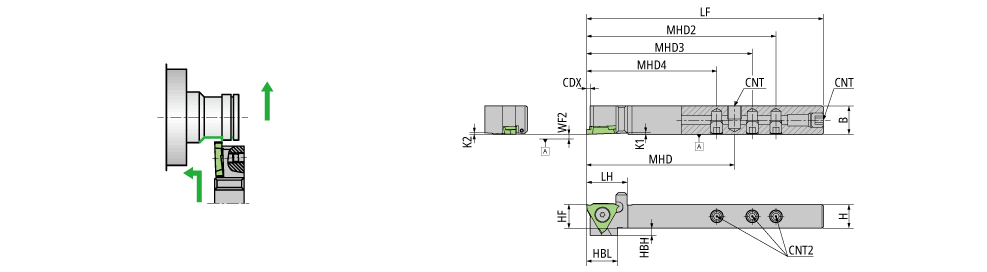

Diagram shows right-hand tool

Designation	HAND	B	CDX	CNT	CNT2	CWN	CWX	H	HBH	HBL	HF	K1	K2	LF	LH	MHD	MHD2	MHD3	MHD4	IC	WF2	GICAT	GIREM	giic
GTTR1012H00-OH3	R	12.00	3.00	Rc1/8	M5	0.30	3.00	10.00	3.0	13.0	10.00	2.00	2.00	100.0	17.150	62.50	80.00	70.00	55.00	9.525~	0.00	7908876		0
GTTR16X00-OH3	R	16.00	3.65	Rc1/8	M5	0.30	3.00	16.00	0.0	0.0	16.00	2.00	2.00	120.0	20.000	78.75	100.00	87.50	70.00	9.525~	0.00	7908951		0

Miniature Machining
Main Application
