NTK Cutting Tools - Metal Working Tools - MILLING -

JQTE Shank type Cutter : For Gray / Ductile cast iron, HRSA, Lead angle 90 degree / DOC max. 8mm

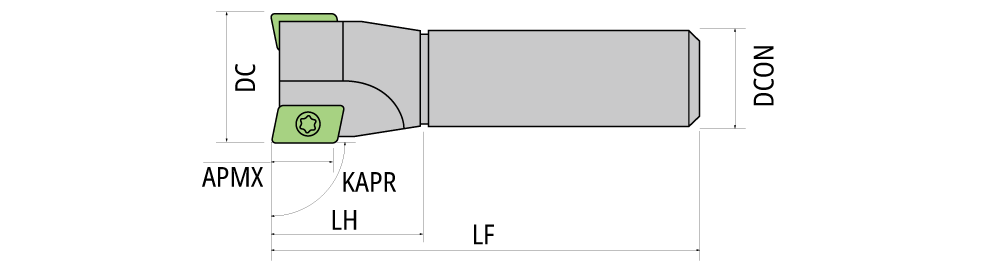

Designation	HAND	CICT	APMX	DC	DCON	GAMF	GAMP	KAPR	LF	LH		S	GICAT
JQTE020-90-1R	R	1	-8.000	20.0000	20.000	-8.0	3.0	90.0	100.0	30.000	0.22	4.76~	7911762
JQTE025-90-2R	R	2	-8.000	25.0000	25.000	-13.0	6.0	90.0	100.0	30.000	0.32	4.76~	7911763
JQTE032-90-3R	R	3	-8.000	32.0000	32.000	-13.0	6.0	90.0	120.0	35.000	0.53	4.76~	7911764
JQTE040-90-4R	R	4	-8.000	40.0000	32.000	-13.0	6.0	90.0	120.0	37.000	0.64	4.76~	7911765

MILLING
Main Application
