NTK Cutting Tools - Metal Working Tools - MILLING -

JQTS Arbor type Cutter : For Gray / Ductile cast iron, HRSA, Lead angle 90 degree / DOC max. 8mm

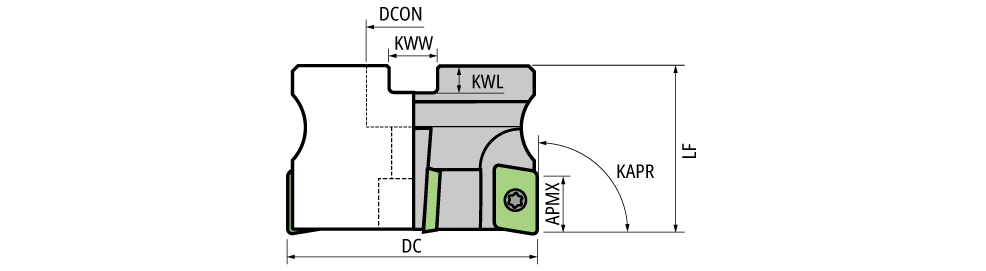

Designation	HAND	CICT	APMX	DC	DCON	GAMF	GAMP	KAPR	KWL	KWW	LF		S	GICAT
JQTS040-90-4R	R	4	-8.000	40.0000	16.000	13.0	6.0	90.0	5.6	8.4	40.0	0.20	4.76~	7911766
JQTS050-90-5R	R	5	-8.000	50.0000	22.000	13.0	6.0	90.0	6.3	10.4	40.0	0.32	4.76~	7911767
JQTS063-90-6R	R	6	-8.000	63.0000	22.000	12.0	6.0	90.0	6.3	10.4	50.0	1.40	4.76~	7911768
JQTS080-90-8R	R	8	-8.000	80.0000	25.400	12.0	6.0	90.0	6.0	9.5	50.0	1.90	4.76~	7912142
