HPC Arbor type Cutter : Dia20-35 / Steel body / Fixed type

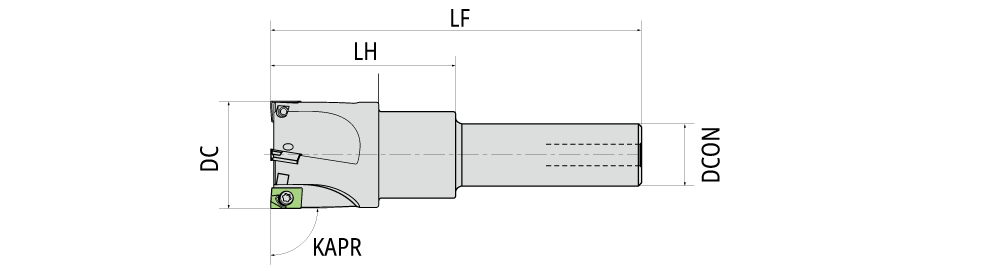

Designation	HAND	CICT	DC	DCON	GAMF	GAMP	KAPR	LF	LH		GICAT	GIREM	giic
RD020T20070R03	R	3	20.0000	20.000	4.0	9.0	90.0	100.0	30.000	0.23	7910224		0
RD025T25070R03	R	3	25.0000	25.000	4.0	9.0	90.0	110.0	40.000	0.37	7910223		0
RD030T20060R04	R	4	30.0000	20.000	4.0	9.0	90.0	120.0	60.000	0.33	7910211		0
RD032T20060R04	R	4	32.0000	20.000	4.0	9.0	90.0	120.0	60.000	0.36	7910210		0
RD035T20060R04	R	4	35.0000	20.000	4.0	9.0	90.0	120.0	60.000	0.36	7910209		0
