TURNING CERAMIC & CARBIDE
Main Application

For 35 deg Rhombic insert
Sub Application

☰

Parameters Search

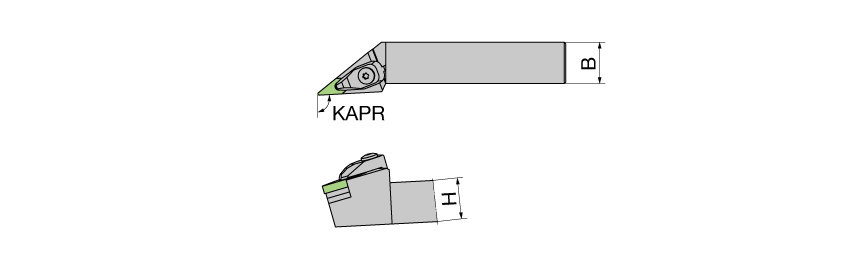

B - Shank width

25.00 (3 options)

GAMF - Rake angle radial

10.0 (1 options)

GAMO - Rake angle orthogonal

6.0 (1 options)

GAMP - Rake angle axial

10.0 (1 options)
15.0 (1 options)

H - Shank height

25.00 (3 options)
32.00 (1 options)

HBKW - Head back offset width

2.00 (1 options)

HF - Functional height

25.00 (3 options)
32.00 (1 options)

KAPR - Tool cutting edge angle

72.5 (1 options)
93.0 (1 options)
117.5 (1 options)

LAMS - Inclination angle

13.0 (1 options)

LF - Functional length

150.000 (3 options)
170.000 (1 options)

LH - Head length

35.000 (1 options)
41.000 (1 options)
44.000 (1 options)

WF - Functional width

12.50 (1 options)
32.00 (2 options)

Indexable Solid Both

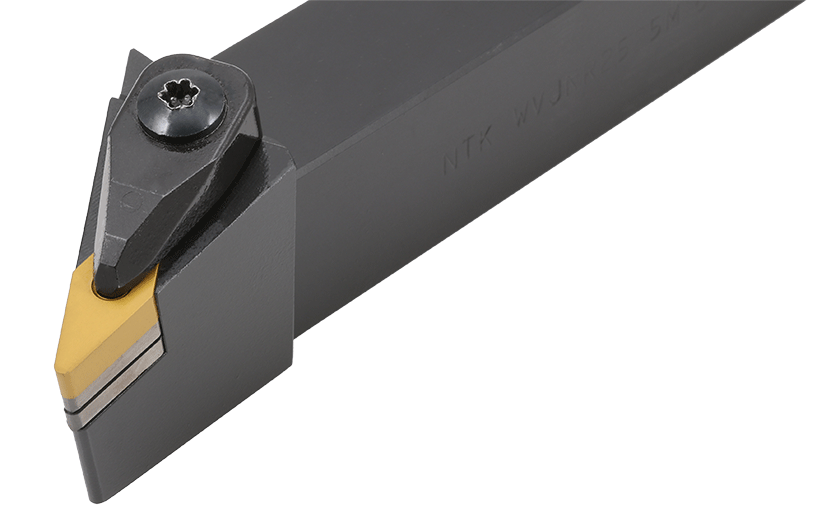

WVJN/HVJN Multi Clamp Toolholders
93 Deg. OD Turning holder Multi clamp / for VN..1604/07 insert

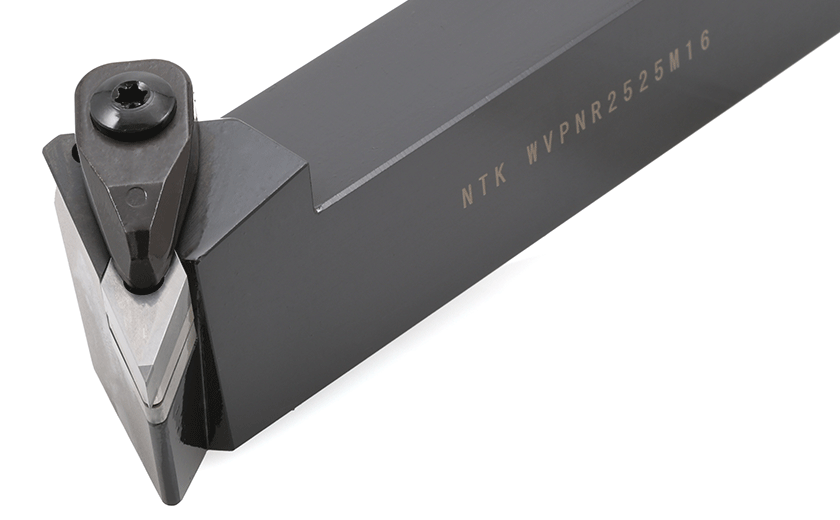

WVPN/HVPN Multi Clamp Toolholders
117.5 Deg. OD Turning holder Multi clamp / for VN..1604/07 insert

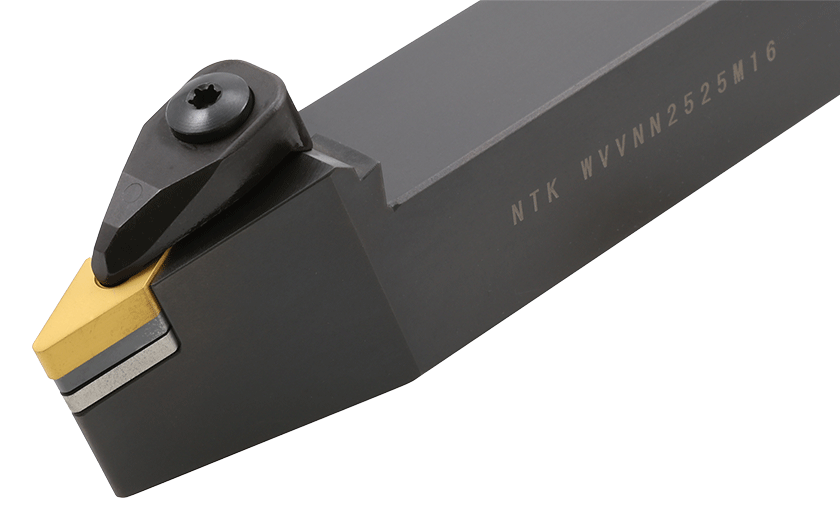

WVVN/HVVN Multi Clamp Toolholders
72.5 Deg. OD Turning holder Multi clamp / for VN..1604/07 insert
