NTK Cutting Tools - Metal Working Tools - TURNING CERAMIC & CARBIDE - For 80 deg Trigon insert

S-WWLN Multi Clamp Toolholders : S-WWLN Multi Clamp Toolholders

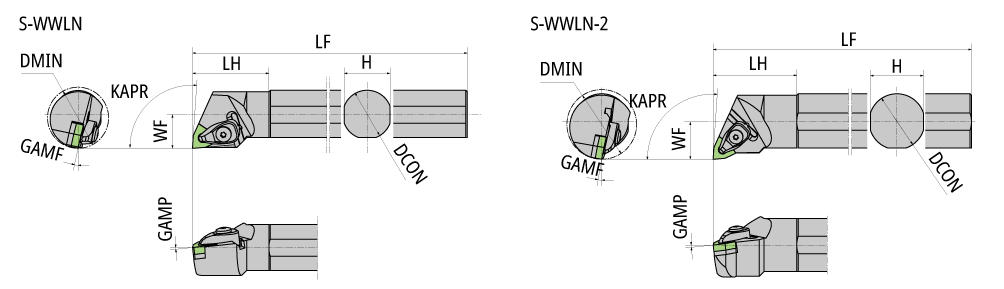

Diagram shows right-hand tool

Designation	HAND	DCON	DMIN	GAMF	GAMP	H	KAPR	LF	LH	S	RE	WF	GICAT
S25R-WWLNL08	L	25.000	33.00	14.0	6.0	24.00	95.0	200.000	40.000	4.76~	0.80	17.00	7911393
S32S-WWLNL08	L	32.000	40.00	12.0	6.0	30.00	95.0	250.000	50.000	4.76~	0.80	22.00	7911395
S40T-WWLNL08	L	40.000	50.00	10.0	6.0	38.00	95.0	300.000	60.000	4.76~	0.80	27.00	7911397
S40T-WWLNL08-2	L	40.000	50.00	10.0	6.0	38.00	95.0	300.000	60.000	4.76~	0.80	27.00	7911562
S25R-WWLNR08	R	25.000	33.00	14.0	6.0	24.00	95.0	200.000	40.000	4.76~	0.80	17.00	7911392
S32S-WWLNR08	R	32.000	40.00	12.0	6.0	30.00	95.0	250.000	50.000	4.76~	0.80	22.00	7911394
S40T-WWLNR08	R	40.000	50.00	10.0	6.0	38.00	95.0	300.000	60.000	4.76~	0.80	27.00	7911396
S40T-WWLNR08-2	R	40.000	50.00	10.0	6.0	38.00	95.0	300.000	60.000	4.76~	0.80	27.00	7911561
